Loader, Wheel Loader

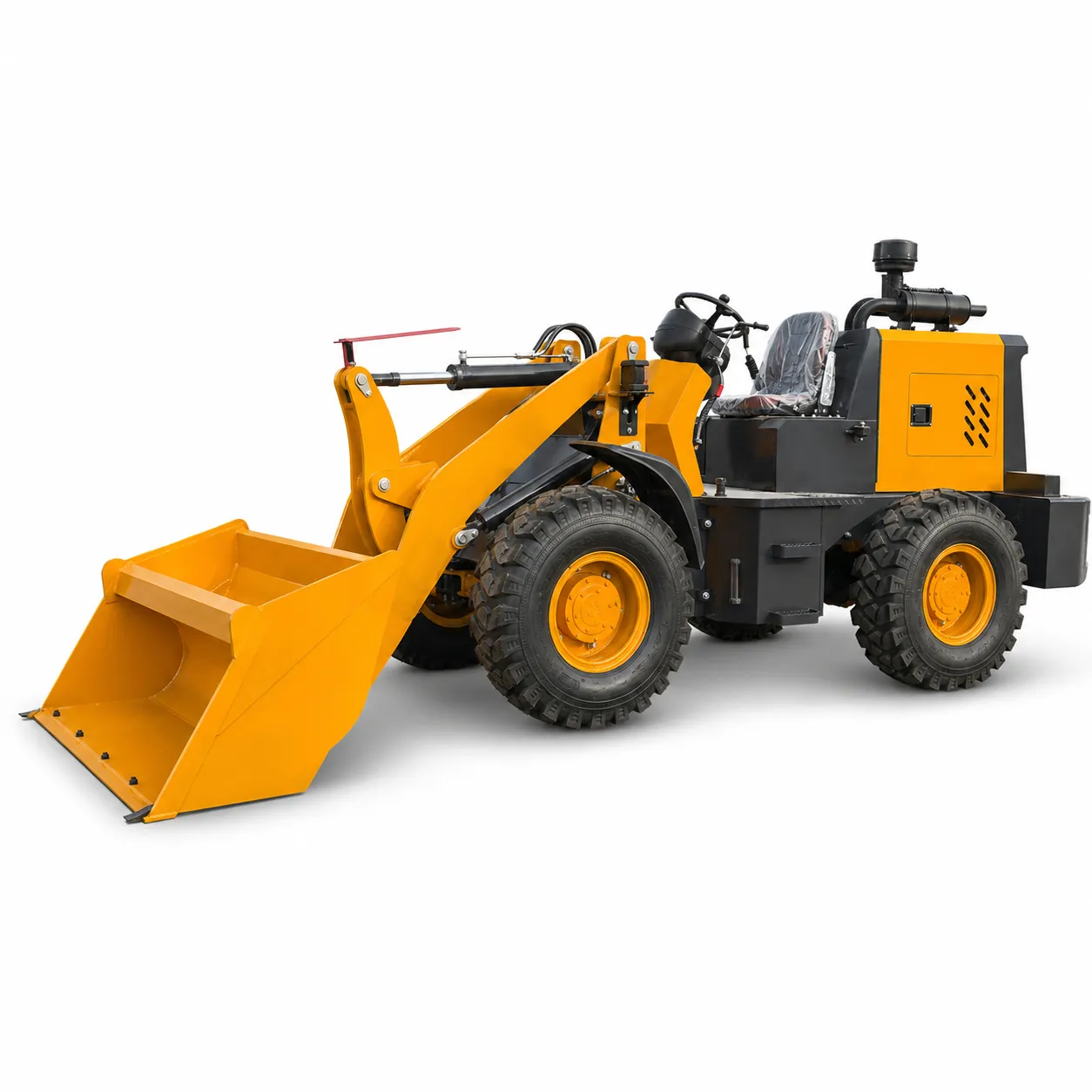

XQ-Z930 1.8 Ton 4WD Compact Wheel Loader

The XQ-Z930 1.8 ton wheel loader is a 4WD compact wheel loader designed for construction, farming, road maintenance, warehouse yards and general outdoor material handling.

With 1800 kg rated load capacity, 1 m³ bucket volume, articulated steering and 3500 mm dumping height, it gives contractors, farms, dealers and rental fleets a stronger loader for daily work.

  • 1800 kg rated load capacity with 1 m³ bucket volume.
  • Four-wheel drive 4WD system with articulated steering.
  • 3500 mm maximum dumping height and 1000 mm dumping reach.
  • 4102 engine with 76 kW rated power and 265 automatic transmission.
  • Optional attachments available for loading, sweeping, snow clearing, digging and land preparation.
Direct Manufacturer
OEM & ODM Available
Global Delivery Support
Warranty & Parts Support
Certifications:
Payment Methods:

Buying Support for Different Machinery Buyers

Competitive Factory Pricing

Direct factory pricing and stable supply help you improve margins and serve your local market.

OEM/ODM & Regional Support

Flexible customization, branding and marketing support help you build a stronger local product offering.

Quality Inspection & Verification

Machines are inspected before shipment, with photos, videos and inspection support available when needed.

Warranty & Spare Parts Support

Reliable warranty support, spare parts supply and technical communication for long-term cooperation.

Suitable Model Recommendation

We help you choose the right model based on your application, working conditions and required capacity.

Reliable Jobsite Performance

Machines are built for construction, agriculture, logistics and industrial working environments.

Easy Operation & Maintenance

Practical design, simple operation and accessible maintenance help reduce daily operating pressure.

Export Delivery Support

We support quotation, documents, shipping coordination and after-sales communication for overseas buyers.

PRODUCT OVERVIEW

Product Overview

The XQ-Z930 1.8 ton wheel loader is a 4WD compact wheel loader designed for construction sites, farms, road maintenance, landscaping, warehouse yards and general outdoor material handling work.

With 1800 kg rated load capacity, 1 m³ bucket volume and 3500 mm maximum dumping height, this model provides stronger loading, lifting and transport performance than the XQ-Z925.

The articulated steering structure, four-wheel drive system and 380 mm minimum ground clearance help improve maneuverability on rough roads, uneven ground and outdoor working areas.

Powered by a 4102 engine with 76 kW rated power and equipped with a 265 automatic transmission torque converter, the XQ-Z930 supports smooth operation, stronger power delivery and easier daily handling.

Multiple optional attachments are available, including buckets, grab buckets, forks, road sweepers, dozer blade, snow shovel, leveler, augers, hydraulic breakers, small digging arm, rotary tiller and scarifier.

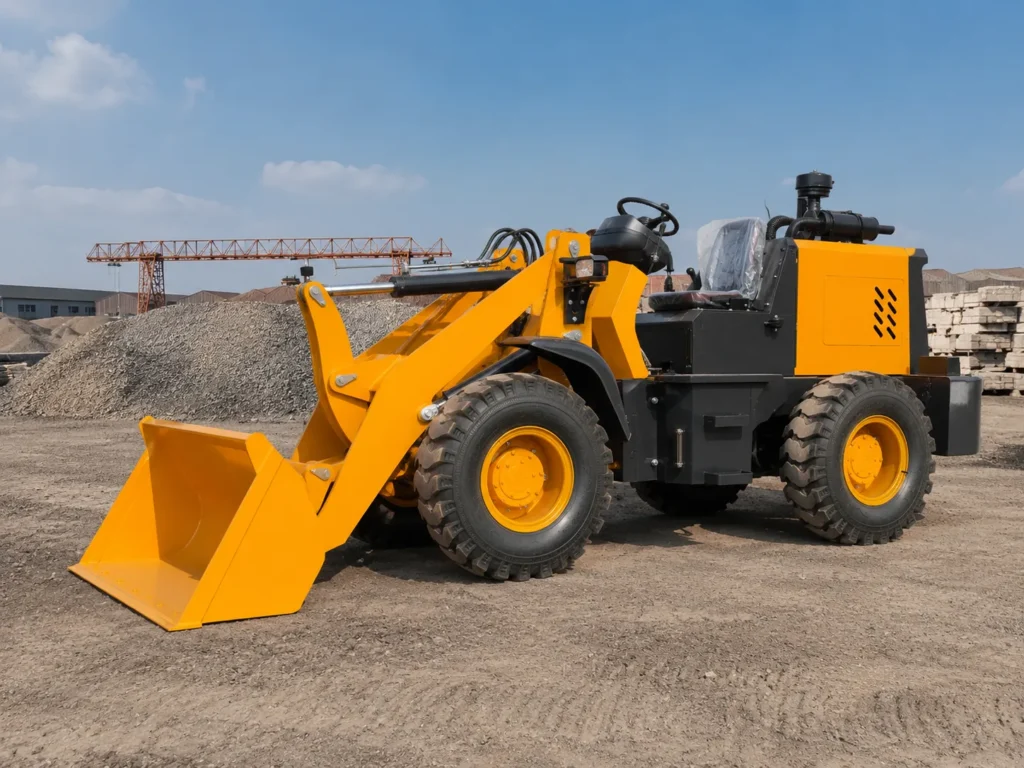

XQ-Z930 1.8 ton 4WD compact wheel loader with front bucket in an outdoor jobsite working scene
TECHNICAL SPECIFICATIONS

Product Specifications

ModelXQ-Z930
Machine Weight4500 kg
Rated Load1800 kg
Engine Model4102
Rated Power76 kW
Max. Dumping Height3500 mm
Dumping Reach1000 mm
Bucket Volume1 m³
AxleLarge / Heavy-Duty Wheel Hub Reduction Axle
Tire1670-20
Wheelbase2250 mm
Wheel Track1560 mm
Drive TypeFour-Wheel Drive 4WD
Steering FormArticulated
Minimum Ground Clearance380 mm
Torque Converter Model265 Automatic Transmission
Parking BrakeManual Caliper Disc Brake
Service Braking SystemAir-over-Hydraulic Caliper Disc Brake
Overall Size4900 × 2000 × 2750 mm
Optional AttachmentsBuckets, Grab Buckets, Forks, Road Sweepers, Dozer Blade, Snow Shovel, Leveler, Augers, Hydraulic Breakers, Small Digging Arm, Rotary Tiller, Scarifier
PRODUCT FEATURES

Key Features

1800 kg Rated Load Capacity

The XQ-Z930 supports 1800 kg rated load capacity, making it suitable for stronger daily loading, transport and material handling tasks on small and medium-sized job sites.

1 m³ Bucket Volume

The 1 m³ bucket helps improve loading efficiency for sand, soil, gravel, feed, fertilizer, snow and other loose materials.

4WD Articulated Steering

4WD Articulated Steering

3500 mm Dumping Height

The 3500 mm maximum dumping height supports loading work for trucks, material piles, farm yards and construction sites.

4102 Engine with 76 kW Power

The 4102 engine delivers 76 kW rated power, providing stronger performance for loading, pushing, lifting and transport operations.

Automatic Transmission Torque Converter

The 265 automatic transmission torque converter supports smoother operation, easier driving and stable power output during daily loader work.

Air-over-Hydraulic Disc Braking

The air-over-hydraulic caliper disc brake system helps improve braking control and operation safety in outdoor working environments.

Compact and Flexible Body

With 4900 × 2000 × 2750 mm overall size, 2250 mm wheelbase and articulated structure, the loader can work flexibly in yards, farms and narrow job sites.

Wide Attachment Compatibility

Optional attachments such as buckets, forks, road sweepers, snow shovel, augers, hydraulic breakers and rotary tiller allow one machine to support multiple tasks.

APPLICATIONS

Recommended Applications

Construction Site Loading

Suitable for loading and moving sand, gravel, soil, bricks, blocks and heavier construction materials on small and medium-sized job sites.

Farm and Rural Work

Can be used for handling feed, fertilizer, soil, manure, hay, grain and other agricultural materials in farms and rural yards.

Road Maintenance

With attachments such as road sweeper, dozer blade, snow shovel and scarifier, the loader can support road cleaning, leveling and maintenance work.

Warehouse and Factory Yards

The compact size and articulated steering make it suitable for outdoor warehouse yards, factories, loading areas and storage sites.

Landscaping and Ground Work

With buckets, leveler, auger, small digging arm and rotary tiller, the loader can support landscaping, soil preparation and light excavation tasks.

Snow and Utility Work

Optional snow shovel, road sweeper and dozer blade attachments allow the machine to support seasonal cleaning and general utility operations.

MANUFACTURER STRENGTH

Direct Manufacturer Support from XQ Machinery

XQ Machinery supports global buyers with factory-direct machinery supply, product customization, quality inspection, export documentation and long-term after-sales service.

Direct Factory Supply

Work directly with XQ Machinery for stable communication, factory quotation and reliable production support.

OEM & ODM Available

We support product customization, branding requirements and configuration options for different markets.

Quality Inspection Before Shipment

Machines are checked before delivery, with photos, videos and inspection support available for buyers.

Global Export Support

Our team supports quotation, export documents, shipping coordination and delivery communication.

Warranty & Spare Parts Support

We provide warranty support, technical communication and spare parts supply for long-term operation.

Long-Term Cooperation

Suitable for dealers, contractors, rental companies and project buyers looking for stable machinery supply.

FAQ

Frequently Asked Questions

What is the rated load capacity of the XQ-Z930 wheel loader?

The XQ-Z930 has a rated load capacity of 1800 kg.

What is the bucket volume of this loader?

The standard bucket volume is 1 m³.

What engine does the XQ-Z930 use?

The XQ-Z930 uses a 4102 engine with 76 kW rated power.

Is the XQ-Z930 a 4WD loader?

Yes. The XQ-Z930 uses a four-wheel drive 4WD system with articulated steering.

What is the maximum dumping height?

The maximum dumping height is 3500 mm.

What is the tire size of the XQ-Z930?

The tire size is 1670-20.

What is the overall size of this compact wheel loader?

The overall size is 4900 × 2000 × 2750 mm.

What optional attachments are available?

Available attachments include buckets, grab buckets, forks, road sweepers, dozer blade, snow shovel, leveler, augers, hydraulic breakers, small digging arm, rotary tiller and scarifier.

Who is the XQ-Z930 suitable for?

The XQ-Z930 is suitable for contractors, farms, warehouse yards, road maintenance teams, landscaping users, dealers and rental companies.
