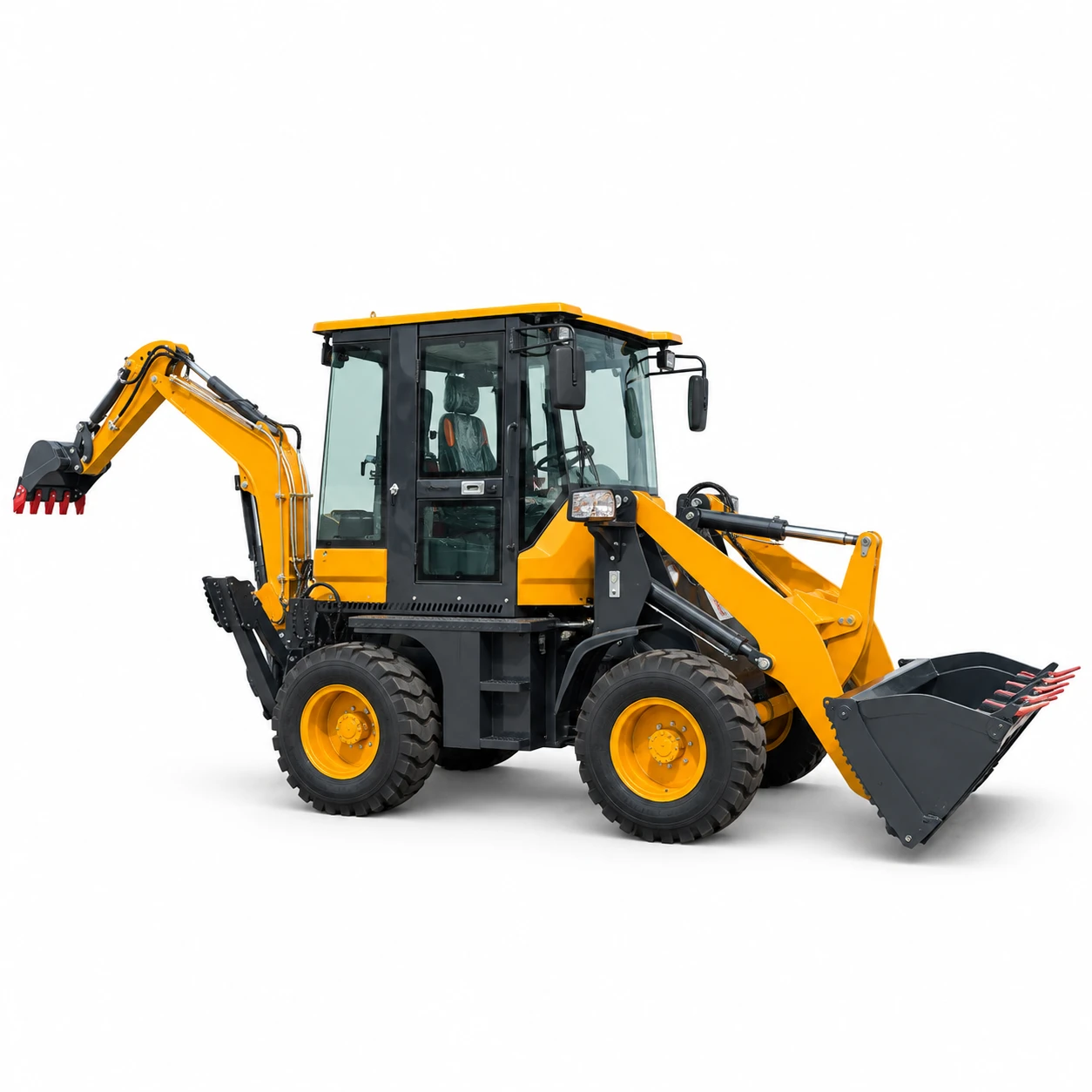

XQ-WZ20-32 4WD backhoe loader with front loader bucket, rear excavator arm, enclosed cab and heavy-duty off-road tires
Backhoe Loader, Loader

XQ-WZ20-32 4WD Backhoe Loader

The XQ-WZ20-32 4WD backhoe loader is a multifunctional machine designed for loading, digging, trenching, backfilling and material handling work. With a 1000 kg maximum loading capacity, 0.8 m³ loader bucket, 0.12 m³ backhoe bucket and 55 kW HUADONG turbo engine, it provides a practical solution for contractors, farms, municipal teams and rural project buyers.

  • 1000 kg maximum loading capacity with 0.8 m³ loader bucket
  • 0.12 m³ backhoe bucket with 3550 mm maximum digging radius
  • 2100 mm maximum telescopic digging depth
  • 55 kW HUADONG 490 Turbo four-cylinder engine
  • Four-wheel drive with fully hydraulic articulated steering
Direct Manufacturer
OEM & ODM Available
Global Delivery Support
Warranty & Parts Support
Certifications：
Payment Methods：
REQUEST FACTORY QUOTE
DOWNLOAD DATASHEET

Buying Support for Different Machinery Buyers

Competitive Factory Pricing

Direct factory pricing and stable supply help you improve margins and serve your local market.

OEM/ODM & Regional Support

Flexible customization, branding and marketing support help you build a stronger local product offering.

Quality Inspection & Verification

Machines are inspected before shipment, with photos, videos and inspection support available when needed.

Warranty & Spare Parts Support

Reliable warranty support, spare parts supply and technical communication for long-term cooperation.

Suitable Model Recommendation

We help you choose the right model based on your application, working conditions and required capacity.

Reliable Jobsite Performance

Machines are built for construction, agriculture, logistics and industrial working environments.

Easy Operation & Maintenance

Practical design, simple operation and accessible maintenance help reduce daily operating pressure.

Export Delivery Support

We support quotation, documents, shipping coordination and after-sales communication for overseas buyers.

PRODUCT OVERVIEW

Product Overview

The XQ-WZ20-32 4WD backhoe loader combines front loading and rear excavation functions in one multifunctional machine. It is designed for loading, digging, trenching, backfilling and material handling in construction, agricultural and rural working environments.

The front loader provides a maximum loading capacity of 1000 kg and uses a 0.8 m³ bucket with a width of 1800 mm. Maximum lifting height reaches 4000 mm, while the maximum dumping height is 3200 mm.

The rear excavator is equipped with a 0.12 m³ digging bucket. It provides a maximum digging radius of 3550 mm, maximum telescopic digging depth of 2100 mm, excavation dumping height of 3200 mm and a 180° swing angle.

The HUADONG 490 Turbo engine delivers 55 kW rated power at 2400 r/min. Four-wheel drive, hydrodynamic transmission and fully hydraulic articulated steering provide practical mobility and maneuverability for outdoor job sites.

With overall dimensions of 5800 × 2800 × 2950 mm, a 2030 mm wheelbase and a minimum turning radius of 4500 mm, the XQ-WZ20-32 is suitable for construction sites, rural infrastructure and general material handling applications.

The machine is suitable for trenching, drainage work, farm projects, municipal maintenance, rural road work and other applications requiring both loading and excavation functions.

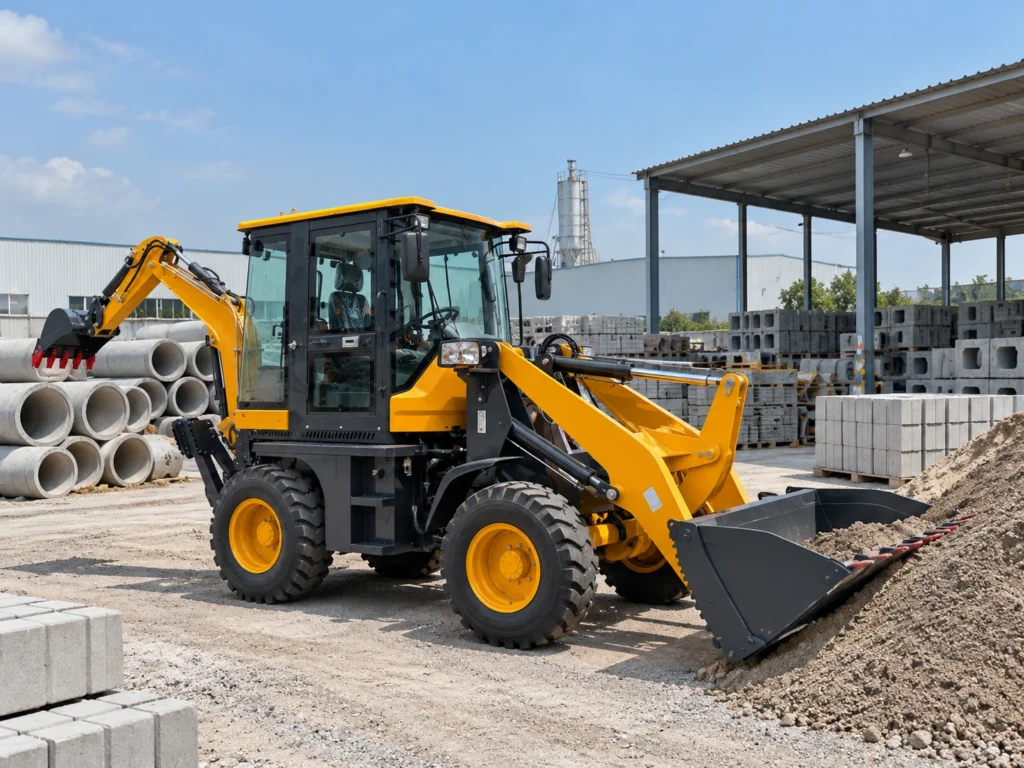

XQ-WZ20-32 4WD backhoe loader loading soil in a construction material yard with front loader bucket, enclosed cab and rear excavator arm
TECHNICAL SPECIFICATIONS

Product Specifications

ModelXQ-WZ20-32
Overall Dimensions5800 × 2800 × 2950 mm
Wheelbase2030 mm
Track Width1500 mm
Minimum Ground Clearance200 mm
Minimum Turning Radius4500 mm
System Pressure16 MPa
Machine Weight≥3200 kg
Maximum Speed≤25 km/h
Maximum Gradeability25°
Maximum Telescopic Digging Depth2100 mm
Maximum Digging Radius3550 mm
Backhoe Bucket Capacity0.12 m³
Boom Length1860 mm
Backhoe Swing Angle180°
Digging Bucket Width475 mm
Excavation Dumping Height3200 mm
Maximum Lifting Height4000 mm
Maximum Dumping Height3200 mm
Maximum Loading Capacity1000 kg
Loader Bucket Capacity0.8 m³
Loader Bucket Width1800 mm
Engine ModelHUADONG 490 Turbo
Rated Power55 kW
Rated Speed2400 r/min
Number of Cylinders4
Cylinder Bore90 mm
Steering TypeFully hydraulic articulated steering
Steering Angle38°
Drive AxleWheel hub reduction axle / wheel hub reduction drive axle
Tyre Size20.5/70-16
Service BrakeCaliper disc brake, air-over-hydraulic actuation
Parking BrakeHand brake
Fuel Tank55 L
Hydraulic Oil Tank55 L
DriveFour-wheel drive (4WD)
Transmission TypeHydrodynamic transmission
Optional Front Loader AttachmentsQuick coupler with solenoid valve and piping, quick-change bucket, pallet forks, 4-in-1 bucket, 6-in-1 bucket, A-type log grapple, grass grapple, snow blade and dozer blade
Optional Backhoe AttachmentsMechanical or hydraulic quick coupler, hydraulic breaker Model 68, auger (1.5 m length, 300 mm diameter), extension arm, telescopic arm, log grapple, and digging buckets in 300 / 400 / 600 / 800 / 900 / 1200 mm widths
PRODUCT FEATURES

Key Features

Front Loader and Rear Excavator in One Machine

The XQ-WZ20-32 combines front loading and rear excavation functions for loading, digging, trenching, backfilling and general material handling work.

1000 kg Maximum Loading Capacity

The front loader provides a maximum loading capacity of 1000 kg for soil, aggregates, farm materials and general job-site handling.

0.8 m³ Loader Bucket

The 0.8 m³ front loader bucket with 1800 mm width supports loading, material transfer, site cleaning and general handling work.

0.12 m³ Backhoe Bucket

The 0.12 m³ rear digging bucket supports trenching, drainage work and general excavation applications.

55 kW HUADONG 490 Turbo Engine

The HUADONG 490 Turbo four-cylinder engine provides 55 kW rated power at 2400 r/min for loading, digging and travel operations.

Strong Digging Performance

The rear backhoe provides a maximum digging radius of 3550 mm and a maximum telescopic digging depth of 2100 mm for trenching and excavation work.

Flexible Lifting and Unloading Capability

The front loader provides a maximum lifting height of 4000 mm and maximum dumping height of 3200 mm for practical loading and material transfer work.

4WD Mobility

Four-wheel drive supports traction and mobility for construction sites, rural roads and uneven outdoor working environments.

Fully Hydraulic Articulated Steering

Fully hydraulic articulated steering with a 38° steering angle helps improve maneuverability in construction, farm and rural working areas.

Wide Range of Optional Attachments

A wide range of front loader and backhoe attachments is available, including quick couplers, pallet forks, multipurpose buckets, grapples, snow blades, hydraulic breaker, auger, extension arm, telescopic arm and digging buckets in multiple widths for different job-site applications.

APPLICATIONS

Recommended Applications

Construction Site Work

Suitable for digging, trenching, backfilling, loading sand and gravel, and handling construction materials on small and medium-sized job sites.

Trenching and Excavation

The rear digging function supports trench digging, excavation, ditch cleaning and underground utility preparation.

Road and Municipal Projects

Can be used for drainage trench work, roadside excavation, utility installation, municipal maintenance and road construction support.

Farm and Rural Engineering

Useful for farmland leveling, ditch digging, material loading, small earthwork and infrastructure work in rural areas.

Backfilling and Material Loading

The front loader bucket can load and move loose materials, while the rear excavator arm supports backfilling, digging and site preparation work.

Small and Medium-Sized Job Sites

With a 1000 kg maximum loading capacity, 0.8 m³ loader bucket and combined loader-backhoe structure, the XQ-WZ20-32 is suitable for small and medium-sized construction, rural and municipal job sites.

MANUFACTURER STRENGTH

Direct Manufacturer Support from XQ Machinery

XQ Machinery supports global buyers with factory-direct machinery supply, product customization, quality inspection, export documentation and long-term after-sales service.

Direct Factory Supply

Work directly with XQ Machinery for stable communication, factory quotation and reliable production support.

OEM & ODM Available

We support product customization, branding requirements and configuration options for different markets.

Quality Inspection Before Shipment

Machines are checked before delivery, with photos, videos and inspection support available for buyers.

Global Export Support

Our team supports quotation, export documents, shipping coordination and delivery communication.

Warranty & Spare Parts Support

We provide warranty support, technical communication and spare parts supply for long-term operation.

Long-Term Cooperation

Suitable for dealers, contractors, rental companies and project buyers looking for stable machinery supply.

FAQ

Frequently Asked Questions

What type of machine is the XQ-WZ20-32?

The XQ-WZ20-32 is a 4WD backhoe loader that combines front loading and rear excavation functions in one multifunctional machine.

What is the maximum loading capacity of the XQ-WZ20-32?

The maximum loading capacity is 1000 kg.

What is the front loader bucket capacity?

The front loader bucket capacity is 0.8 m³.

What is the rear digging bucket capacity?

The rear digging bucket capacity is 0.12 m³.

What engine does the XQ-WZ20-32 use?

The XQ-WZ20-32 uses a HUADONG 490 Turbo four-cylinder engine with 55 kW rated power at 2400 r/min.

How deep can the XQ-WZ20-32 dig?

The maximum telescopic digging depth is 2100 mm, and the maximum digging radius is 3550 mm.

What is the maximum lifting height of the XQ-WZ20-32?

The maximum lifting height is 4000 mm.

What is the maximum dumping height?

The maximum dumping height is 3200 mm.

Is this machine suitable for construction and farm work?

Yes. The XQ-WZ20-32 is suitable for construction, municipal projects, farm work, rural infrastructure, trenching, drainage work and general material handling.

Is the XQ-WZ20-32 four-wheel drive?

Yes. Four-wheel drive is included in the current WZ20-32 specification.

What optional attachments are available for the XQ-WZ20-32?

Optional attachments include front and rear quick couplers, pallet forks, 4-in-1 and 6-in-1 buckets, log grapples, grass grapple, snow blade, dozer blade, hydraulic breaker, auger, extension arm, telescopic arm and digging buckets in multiple widths.
