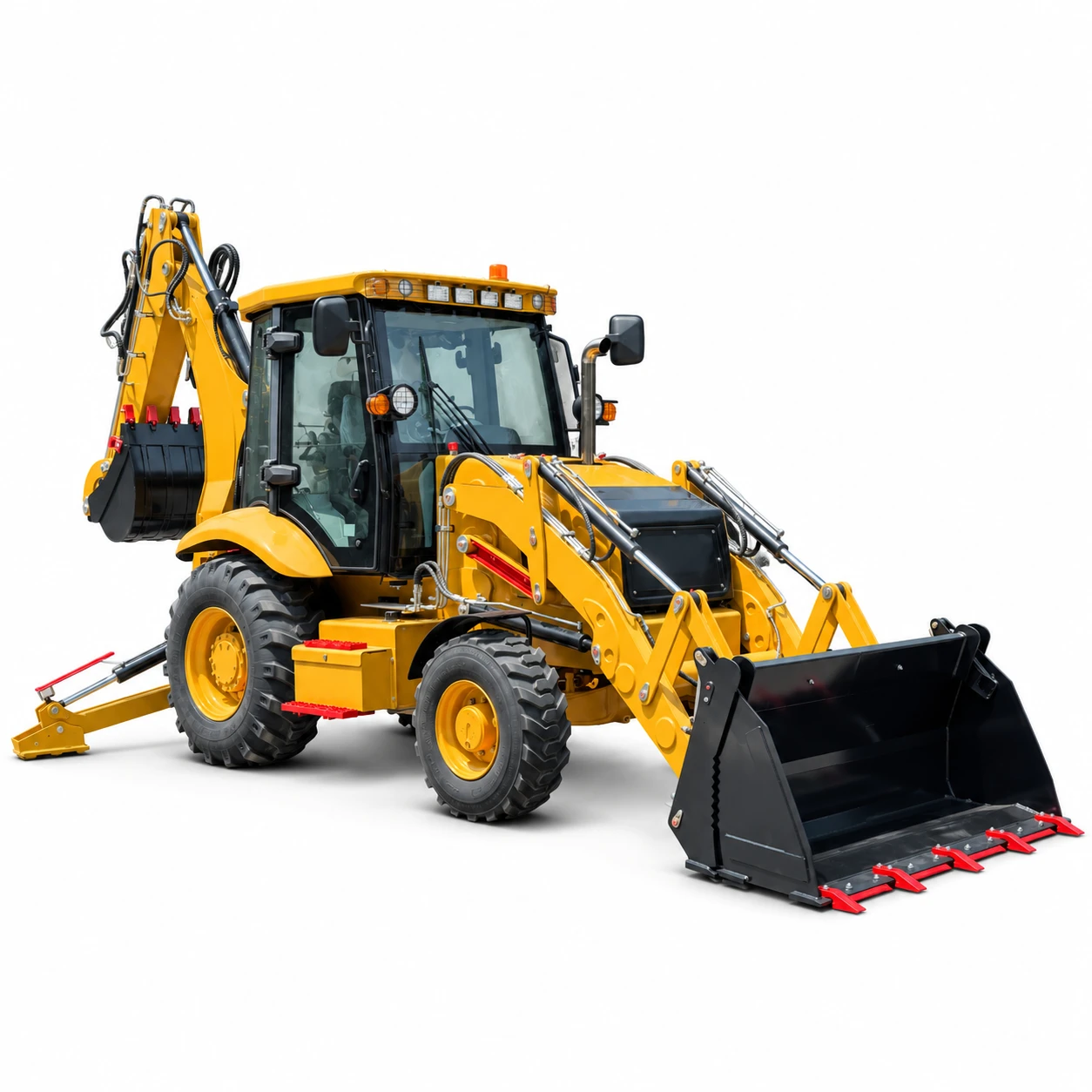

XQ-WZ420D 4WD backhoe loader with front loader bucket, rear excavator arm, enclosed cab, stabilizer and heavy-duty tires
Backhoe Loader, Loader

XQ-WZ420D 4WD Backhoe Loader

The XQ-WZ420D 4WD backhoe loader combines front loading and rear excavation functions for loading, digging, trenching, backfilling and material handling work. With a 1.5 m³ loader bucket, 2800 kg loader lifting capacity, 0.3 m³ backhoe bucket and 76 kW Yunnei turbo engine, it provides practical performance together with four-wheel drive and flexible attachment options.

  • 1.5 m³ loader bucket with 2800 kg loader lifting capacity
  • 0.3 m³ backhoe bucket with 4100 mm maximum digging depth
  • Optional telescopic arm extends digging depth to 5000 mm
  • 76 kW Yunnei YN38GBZ turbo engine with four-wheel drive
  • Multiple front and rear attachments available for different job-site applications
Direct Manufacturer
OEM & ODM Available
Global Delivery Support
Warranty & Parts Support
Certifications：
Payment Methods：
REQUEST FACTORY QUOTE
DOWNLOAD DATASHEET

Buying Support for Different Machinery Buyers

Competitive Factory Pricing

Direct factory pricing and stable supply help you improve margins and serve your local market.

OEM/ODM & Regional Support

Flexible customization, branding and marketing support help you build a stronger local product offering.

Quality Inspection & Verification

Machines are inspected before shipment, with photos, videos and inspection support available when needed.

Warranty & Spare Parts Support

Reliable warranty support, spare parts supply and technical communication for long-term cooperation.

Suitable Model Recommendation

We help you choose the right model based on your application, working conditions and required capacity.

Reliable Jobsite Performance

Machines are built for construction, agriculture, logistics and industrial working environments.

Easy Operation & Maintenance

Practical design, simple operation and accessible maintenance help reduce daily operating pressure.

Export Delivery Support

We support quotation, documents, shipping coordination and after-sales communication for overseas buyers.

PRODUCT OVERVIEW

Product Overview

The XQ-WZ420D 4WD backhoe loader combines front loader and rear excavator functions in one multifunctional construction machine. With an operating weight of 7100 kg, transport dimensions of 7600 × 2360 × 2890 mm and four-wheel drive, it is designed for loading, digging, trenching, backfilling and general material handling work.

The front loader uses a 1.5 m³ bucket and provides a loader lifting capacity of 2800 kg. A 38 kN breakout force, 2800 mm bucket dumping height and 1062 mm bucket dumping reach support aggregate loading, site cleaning, material transfer and other front-loader operations.

The rear backhoe is equipped with a 0.3 m³ digging bucket and provides a maximum digging depth of 4100 mm. An optional telescopic arm can extend the digging depth to 5000 mm, while the 190° backhoe swing angle supports trenching and excavation over a wider working area.

The XQ-WZ420D 4WD backhoe loader uses a Yunnei YN38GBZ turbo engine with 76 kW rated power as standard. A YJ280 torque converter, fixed-shaft powershift gearbox, 4 forward and 4 reverse gears and a maximum travel speed of 30 km/h provide practical travel and working performance.

The hydraulic system operates at 22 MPa and provides 46.5 kN backhoe bucket digging force and 31 kN loader bucket breakout force. Hydraulic pilot control, A-type stabilizers and four-wheel drive support loading and rear excavation operations, while the standard luxury cab includes a sunroof, heating, adjustable rotating seat, adjustable instrument panel and LCD display.

A range of optional front and rear attachments is available for different job-site requirements, including material handling, trenching, breaking, drilling and specialized loading work. Together with its 39 kN maximum traction force, 300 mm minimum ground clearance and combined loader-backhoe structure, the XQ-WZ420D 4WD backhoe loader provides a flexible solution for construction, road maintenance, drainage, municipal and rural engineering applications.

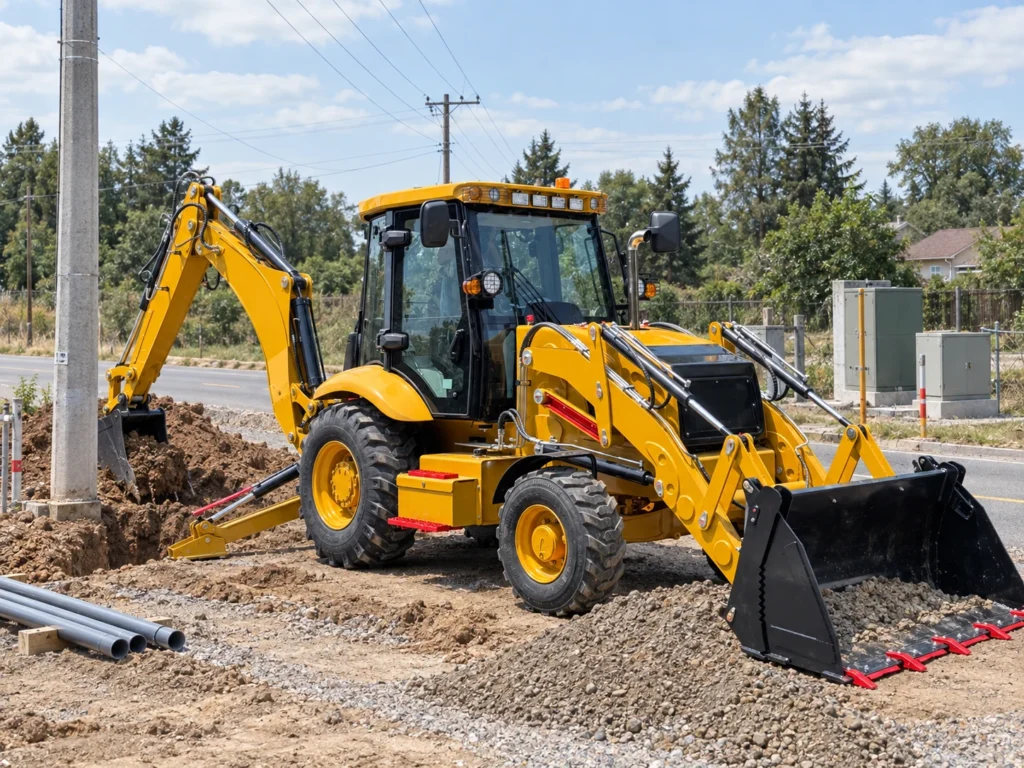

XQ-WZ420D 4WD backhoe loader working on a roadside construction site with front loader bucket, rear excavator arm, enclosed cab and stabilizers
TECHNICAL SPECIFICATIONS

Product Specifications

ModelXQ-WZ420D
Operating Weight7100 kg
Transport Dimensions (L × W × H)7600 × 2360 × 2890 mm
Wheelbase2250 mm
Minimum Ground Clearance300 mm
Loader Bucket Capacity1.5 m³
Loader Lifting Capacity2800 kg
Breakout Force38 kN
Bucket Dumping Height2800 mm
Bucket Dumping Reach1062 mm
Backhoe Bucket Capacity0.3 m³
Maximum Digging Depth4100 mm
Optional Digging Depth (Telescopic Arm)5000 mm
Backhoe Swing Angle190°
Maximum Traction Force39 kN
Standard EngineYunnei YN38GBZ Turbo engine
Engine TypeInline, direct injection, four-stroke, water-cooled
Rated Power76 kW
Optional EngineYUCHAI YCD4T33T6-115 (90 kW) / CUMMINS 74 kW 4BT3.9-C100 / CUMMINS EURO 3 75 kW QSB3.9-C100 / EURO 5 YUCHAI 81 kW or EPA 4 CUMMINS 74 kW engine
Steering Angle±36°
Minimum Turning Radius6581 mm
Steering System Pressure12 MPa
Axle BrandFEICHENG YUNYU front steering drive axle
Main Reduction TypeDouble Reduction
Final ReductionSingle-Stage Wheel Hub Final Reduction
Rated Axle Load4 / 18.5 t
Torque ConverterYJ280
Torque Converter TypeSingle-Stage, Single-Phase, Three-Element
Torque Converter CoolingPressurized Oil Circulation
Gearbox TypeFixed-Shaft Powershift
Gears4 forward gears, 4 reverse gears
Maximum Speed30 km/h
Tire ModelFront tire: 14-17.5 & Rear tire: 19.5L-24
Tire PressureFront tire pressure: 0.22 MPa & Rear tire pressure: 0.22 MPa
Service BrakeCaliper Disc Brake, Air-over-Hydraulic Actuation; External / Self-Adjusting / Self-Balancing
Parking / Emergency BrakeBraking Applied by Actuating Force; Manual Brake Release
Hydraulic System Pressure22 MPa
Backhoe Bucket Digging Force46.5 kN
Loader Bucket Breakout Force31 kN
Bucket Lifting Time5.4 s
Bucket Lowering Time3.1 s
Bucket Dumping Time2.0 s
Packing Information2 units / 40HC; tyres, backhoe boom and bucket removed; auxiliary loading wheels used for container loading
Standard ConfigurationFront loader bucket, backhoe digging bucket, luxury cab with interior trim, fan, LED lights, large reversing camera display, emergency glass hammer, fire extinguisher, sliding windows, sunroof, heating, luxury adjustable rotating seat, adjustable instrument panel, LCD display, hydraulic pilot control, Yunnei 76 kW engine, 14-17.5 tubeless front tyre, 19.5L-24 tubeless rear tyre, special 280 integrated dual high/low-speed gearbox, YUNYU front steering drive axle, four-wheel drive (4WD), A-type stabilizers
DriveFour-wheel drive (4WD)
Optional Front Loader AttachmentsQuick coupler with solenoid valve and piping, quick-change bucket, pallet forks, 4-in-1 bucket, 6-in-1 bucket, A-type log grapple, grass grapple, snow blade and dozer blade
Optional Backhoe AttachmentsMechanical or hydraulic quick coupler, hydraulic breaker Model 68, auger (1.5 m length, 300 mm diameter), extension arm, telescopic arm, log grapple, and digging buckets in 300 / 400 / 600 / 800 / 900 / 1200 mm widths
PRODUCT FEATURES

Key Features

Loader and Backhoe in One Machine

The XQ-WZ420D 4WD backhoe loader combines front loading and rear digging functions, allowing one machine to handle material loading, excavation, trenching, backfilling and general job-site support work.

1.5 m³ Loader Bucket

The 1.5 m³ loader bucket and 2800 kg loader lifting capacity support loading, short-distance material handling, site cleaning and general construction work.

0.3 m³ Backhoe Bucket

The rear backhoe bucket capacity is 0.3 m³, making the machine suitable for trenching, drainage work, foundation support and small-to-medium excavation tasks.

4100 mm Digging Depth

The standard maximum digging depth is 4100 mm, with an optional telescopic arm configuration available to extend digging depth to 5000 mm.

76 kW Turbo Engine

The standard Yunnei YN38GBZ turbo engine provides 76 kW rated power for loading, driving, digging and hydraulic operation under daily job-site conditions.

Optional Engine Choices

Optional engine choices include Yuchai 90 kW, Cummins 74 kW, Cummins EURO 3 75 kW, EURO 5 Yuchai 81 kW and EPA 4 Cummins 74 kW configurations.

Four-Wheel Drive Configuration

The four-wheel drive system supports better traction and job-site mobility for construction sites, rural roads, earthmoving work and uneven ground.

Hydraulic Pilot Operation

The hydraulic pilot operation system supports smoother control for loading and digging work, helping improve operator comfort and working efficiency.

Luxury Cab Configuration

The standard luxury cab includes interior trim, fan, LED lights, a large reversing camera display, sliding windows, sunroof, heating, adjustable rotating seat, adjustable instrument panel and LCD display.

A-Type Stabilizers

The A-type stabilizers help provide support during rear excavation work, improving machine stability for digging and trenching operations.

Efficient Hydraulic Performance

With 22 MPa hydraulic system pressure, 46.5 kN backhoe bucket digging force and 31 kN loader bucket breakout force, the machine provides practical hydraulic performance for excavation and loading work.

Container Loading Support

The machine supports 2 units per 40HC container, with tyres, backhoe boom and bucket removed and auxiliary loading wheels used for container loading according to the current packing specification.

Wide Range of Optional Attachments

A wide range of front loader and backhoe attachments is available, including quick couplers, pallet forks, multipurpose buckets, grapples, snow blades, hydraulic breaker, auger, extension arm, telescopic arm and digging buckets in multiple widths for different job-site applications.

APPLICATIONS

Recommended Applications

Construction Sites

Suitable for loading aggregates, digging trenches, backfilling, moving materials and supporting general construction work on job sites.

Road Maintenance

Can be used for road repair, shoulder maintenance, drainage clearing, roadside earthmoving and small municipal repair work.

Trenching and Drainage Work

The rear backhoe can support trenching, drainage channel digging, pipe laying preparation and related excavation tasks.

Rural Construction

Suitable for village road projects, rural house construction, farm infrastructure, land leveling and general countryside material handling.

Farm and Plantation Support

Can be used for farm road maintenance, ditch digging, soil handling, material loading and small earthmoving work in agricultural areas.

Municipal Engineering

Suitable for municipal maintenance teams that need one machine for loading, digging, road repair, small excavation and utility support work.

Rental Fleet Use

A practical choice for rental companies serving contractors, rural builders, road maintenance teams, farms and small project buyers.

Material Loading and Handling

The front loader bucket can be used for loading soil, sand, gravel, debris and other job-site materials into trucks or temporary storage areas.

MANUFACTURER STRENGTH

Direct Manufacturer Support from XQ Machinery

XQ Machinery supports global buyers with factory-direct machinery supply, product customization, quality inspection, export documentation and long-term after-sales service.

Direct Factory Supply

Work directly with XQ Machinery for stable communication, factory quotation and reliable production support.

OEM & ODM Available

We support product customization, branding requirements and configuration options for different markets.

Quality Inspection Before Shipment

Machines are checked before delivery, with photos, videos and inspection support available for buyers.

Global Export Support

Our team supports quotation, export documents, shipping coordination and delivery communication.

Warranty & Spare Parts Support

We provide warranty support, technical communication and spare parts supply for long-term operation.

Long-Term Cooperation

Suitable for dealers, contractors, rental companies and project buyers looking for stable machinery supply.

FAQ

Frequently Asked Questions

What is the main use of the XQ-WZ420D 4WD backhoe loader?

The XQ-WZ420D 4WD backhoe loader is mainly used for loading, digging, trenching, backfilling, road maintenance, rural construction, farm infrastructure and general material handling work.

What is the loader bucket capacity?

The loader bucket capacity is 1.5 m³.

What is the loader lifting capacity?

The loader lifting capacity is 2800 kg.

What is the backhoe bucket capacity?

The backhoe bucket capacity is 0.3 m³.

What is the maximum digging depth?

The standard maximum digging depth is 4100 mm. An optional telescopic arm configuration can increase the digging depth to 5000 mm.

What engine does the XQ-WZ420D use?

The standard engine is a Yunnei YN38GBZ turbo engine with 76 kW rated power.

Are optional engines available?

Yes. Optional engines include the YUCHAI YCD4T33T6-115 rated at 90 kW, CUMMINS 4BT3.9-C100 rated at 74 kW, CUMMINS EURO 3 QSB3.9-C100 rated at 75 kW, and EURO 5 YUCHAI 81 kW or EPA 4 CUMMINS 74 kW engine options.

Is the XQ-WZ420D a four-wheel drive backhoe loader?

Yes. The standard configuration includes four-wheel drive.

What are the transport dimensions?

The transport dimensions are 7600 × 2360 × 2890 mm.

What is the operating weight of the XQ-WZ420D?

The operating weight is 7100 kg.

What tires does this model use?

The front tire model is 14-17.5, and the rear tire model is 19.5L-24.

What is the maximum speed?

The maximum speed is 30 km/h.

What brake system does this machine use?

The service brake uses a caliper disc brake with air-over-hydraulic actuation and an external, self-adjusting and self-balancing brake structure.

How many units can be loaded in one 40HC container?

According to the current packing specification, 2 units can be loaded in one 40HC container, with the tyres, backhoe boom and bucket removed and auxiliary loading wheels used for container loading.

What standard cab features are included?

The standard cab configuration includes interior trim, fan, LED lights, a large reversing camera display, emergency glass hamm

Can this machine be used for road maintenance and trenching?

Yes. The XQ-WZ420D can be used for road maintenance, trenching, drainage work, utility support, backfilling and general earthmoving applications.

What optional attachments are available for the XQ-WZ420D?

Optional attachments include front and rear quick couplers, pallet forks, 4-in-1 and 6-in-1 buckets, log grapples, grass grapple, snow blade, dozer blade, hydraulic breaker, auger, extension arm, telescopic arm and digging buckets in multiple widths.
