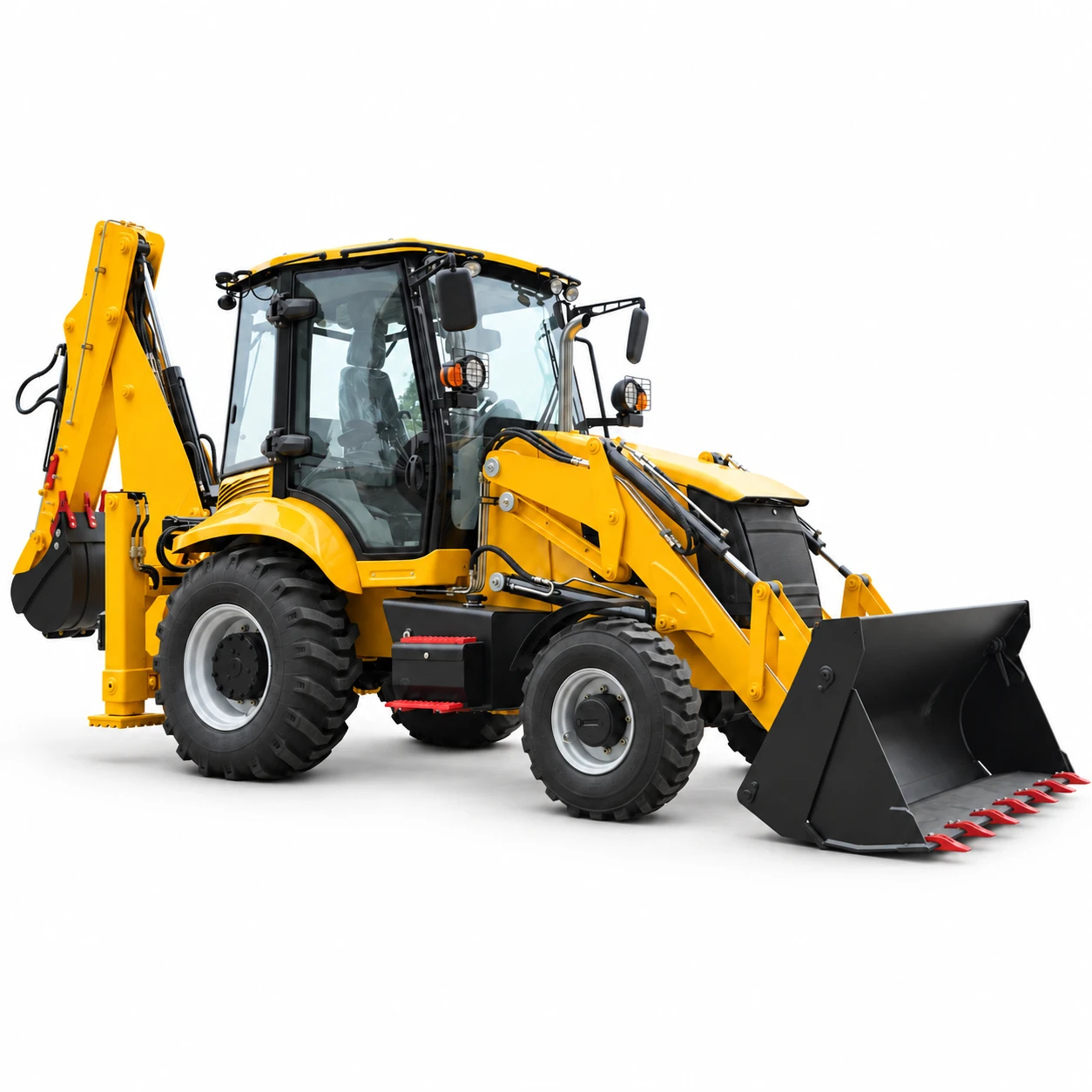

XQ-WZ3CX 4WD backhoe loader main product image with enclosed cab, front loader bucket and rear excavator arm
Backhoe Loader, Loader

XQ-WZ3CX 4WD Backhoe Loader

The XQ-WZ3CX 4WD backhoe loader is a multifunctional construction machine designed for loading, digging, trenching, backfilling and material handling work. With a 1.5 m³ loader bucket, 2800 kg loader lifting capacity, 0.3 m³ backhoe bucket and 70 kW WeiChai turbo engine, the WZ3CX 4WD backhoe loader provides practical loading and excavation performance for contractors, rental companies and project buyers.

  • 1.5 m³ loader bucket with 2800 kg loader lifting capacity
  • 0.3 m³ backhoe bucket with 4100 mm maximum digging depth
  • Optional 5300 mm digging depth with telescopic arm
  • 70 kW WeiChai turbo engine with optional Yuchai and Cummins engines
  • Four-wheel drive, hydraulic pilot control and A-type stabilizers
Direct Manufacturer
OEM & ODM Available
Global Delivery Support
Warranty & Parts Support
Certifications：
Payment Methods：
REQUEST FACTORY QUOTE
DOWNLOAD DATASHEET

Buying Support for Different Machinery Buyers

Competitive Factory Pricing

Direct factory pricing and stable supply help you improve margins and serve your local market.

OEM/ODM & Regional Support

Flexible customization, branding and marketing support help you build a stronger local product offering.

Quality Inspection & Verification

Machines are inspected before shipment, with photos, videos and inspection support available when needed.

Warranty & Spare Parts Support

Reliable warranty support, spare parts supply and technical communication for long-term cooperation.

Suitable Model Recommendation

We help you choose the right model based on your application, working conditions and required capacity.

Reliable Jobsite Performance

Machines are built for construction, agriculture, logistics and industrial working environments.

Easy Operation & Maintenance

Practical design, simple operation and accessible maintenance help reduce daily operating pressure.

Export Delivery Support

We support quotation, documents, shipping coordination and after-sales communication for overseas buyers.

PRODUCT OVERVIEW

Product Overview

The XQ-WZ3CX 4WD backhoe loader combines front loading and rear excavation functions in one multifunctional construction machine. It is designed for loading, digging, trenching, backfilling, site leveling and material transfer work.

The front loader of the WZ3CX 4WD backhoe loader uses a 1.5 m³ bucket and provides a loader lifting capacity of 2800 kg. A 38 kN breakout force, 2800 mm bucket height and 1062 mm dumping reach support loading, site cleaning, leveling and general material handling.

The rear excavator is equipped with a 0.3 m³ backhoe bucket and provides a standard maximum digging depth of 4100 mm. An optional telescopic arm can extend the digging depth to 5300 mm, while the 190° backhoe swing angle provides practical working coverage.

The WZ3CX 4WD backhoe loader uses a standard WeiChai turbo engine with 70 kW rated power. Four-wheel drive, a YJ280 torque converter, fixed-shaft powershift transmission and 4 forward and 4 reverse gears provide practical travel and working performance.

The hydraulic system operates at 22 MPa and works together with hydraulic pilot control for smoother operation. A-type stabilizers provide additional support during rear excavation, while the luxury cab includes a reversing camera display, sunroof, heating, adjustable rotating seat and LCD display.

With a 10700 kg operating weight, 300 mm minimum ground clearance and combined loader-backhoe structure, the XQ-WZ3CX is suitable for construction, road maintenance, drainage work, rural infrastructure and general loading and excavation applications.

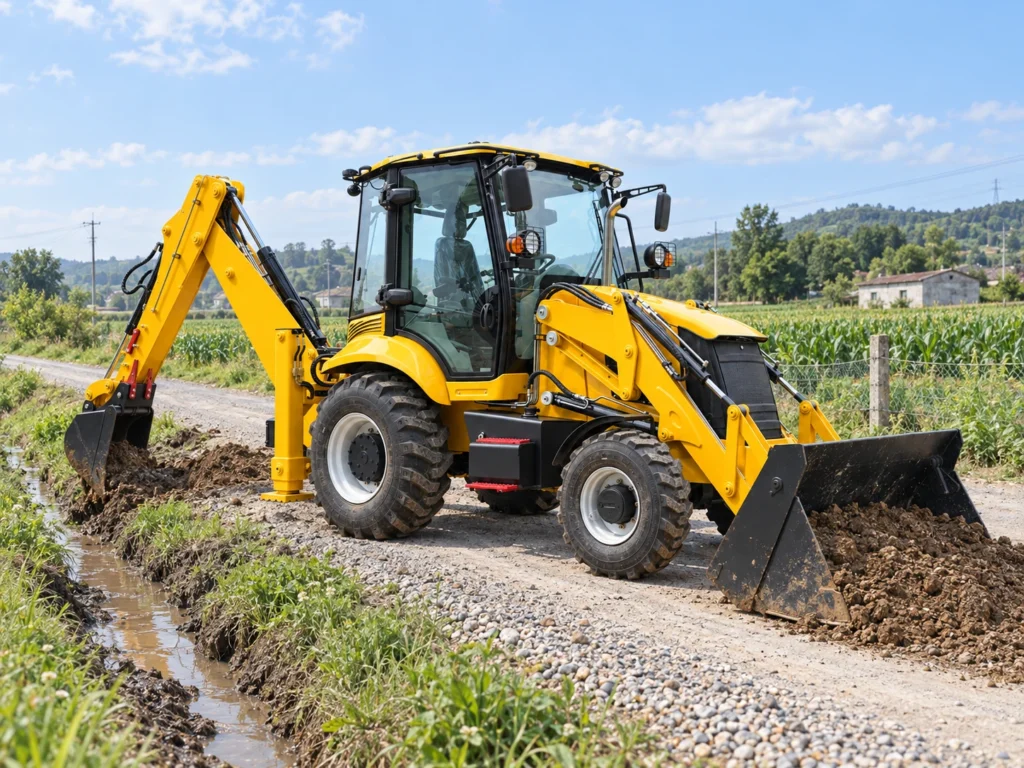

XQ-WZ3CX 4WD backhoe loader working on rural roadside drainage and earthmoving with front loader bucket and rear excavator arm
TECHNICAL SPECIFICATIONS

Product Specifications

ModelXQ-WZ3CX
Operating Weight10700 kg
Transport Dimensions7600 × 2380 × 2890 mm
Wheelbase2250 mm
Minimum Ground Clearance300 mm
Loader Bucket Capacity1.5 m³
Breakout Force38 kN
Loader Lifting Capacity2800 kg
Bucket Height2800 mm
Bucket Dumping Reach1062 mm
Backhoe Bucket Capacity0.3 m³
Maximum Digging Depth4100 mm
Optional Digging Depth5300 mm with telescopic arm
Backhoe Swing Angle190°
Maximum Traction Force39 kN
Standard EngineWeiChai turbo engine
Engine TypeInline, direct injection, four-stroke, water-cooled
Rated Power70 kW
Optional EngineYUCHAI YCD4T33T6-115, 85 kW / CUMMINS 4BT3.9-C125, 93 kW / CUMMINS 4BT3.9-C125, 93 kW
Steering Angle±36°
Minimum Turning Radius6581 mm
Steering System Pressure12 MPa
Drive Axle BrandFEICHENG YUNYU - Front Steering Drive Axle
Main Reduction TypeDouble reduction
Final ReducerSingle-stage wheel hub final reduction
Rated Axle Load4 / 10.5 t
Torque Converter ModelYJ280
Torque Converter TypeSingle-stage, single-phase, three-element
Torque Converter CoolingPressurized oil circulation
Gearbox TypeFixed-shaft powershift
Number of Gears4 forward / 4 reverse
Maximum Speed30 km/h
Tyre SizesFront tire: 14-17.5 & Rear tire: 19.5L-24
Front Tyre Pressure0.3 MPa
Rear Tyre Pressure0.4 MPa
Service BrakeCaliper disc brake, air-over-hydraulic actuation
Parking / Emergency BrakeExternal; self-adjusting; self-balancing; braking applied by actuating force; manual brake release
Hydraulic System Pressure22 MPa
Backhoe Bucket Digging Force46.5 kN
Loader Bucket Breakout Force31 kN
Bucket Lifting Time5.4 s
Bucket Lowering Time3.1 s
Bucket Dumping Time2.0 s
Packing Quantity2 units / 40HC; tyres, backhoe boom and bucket removed; auxiliary wheels used for loading
Standard ConfigurationFront loader with bucket, backhoe with digging bucket, luxury cab with interior trim, fan, LED lights, large reversing camera display, emergency glass hammer, fire extinguisher, sliding windows, sunroof, heating, luxury adjustable rotating seat, adjustable instrument panel, LCD display, hydraulic pilot control, WeiChai turbo engine with 70 kW rated power, 14-17.5 tubeless front tyres, 19.5L-24 tubeless rear tyres, special 280 integrated dual high/low-speed gearbox, YUNYU front steering drive axle, four-wheel drive and A-type stabilizers
Optional Front Loader AttachmentsQuick coupler with solenoid valve and piping, quick-change bucket, pallet forks, 4-in-1 bucket, 6-in-1 bucket, A-type log grapple, grass grapple, snow blade and dozer blade
Optional Backhoe AttachmentsMechanical or hydraulic quick coupler, hydraulic breaker Model 68, auger (1.5 m length, 300 mm diameter), extension arm, telescopic arm, log grapple, and digging buckets in 300 / 400 / 600 / 800 / 900 / 1200 mm widths
PRODUCT FEATURES

Key Features

Loader and Backhoe in One Machine

The WZ3CX 4WD backhoe loader combines front loading and rear excavation functions, allowing one machine to handle material loading, digging, trenching, backfilling and general job-site support work.

1.5 m³ Loader Bucket

The 1.5 m³ loader bucket and 2800 kg loader lifting capacity support aggregate loading, site cleaning, material transfer and general construction work.

0.3 m³ Backhoe Bucket

The 0.3 m³ rear backhoe bucket is suitable for trenching, drainage work, foundation preparation and general excavation applications.

4100 mm Digging Depth

The standard maximum digging depth is 4100 mm, while an optional telescopic arm can extend the digging depth to 5300 mm for deeper excavation requirements.

70 kW WeiChai Turbo Engine

The standard WeiChai turbo engine provides 70 kW rated power for driving, loading, digging and hydraulic operation under daily job-site conditions.

Optional Engine Choices

Yuchai and Cummins engine options are available for buyers who require different power outputs, engine brands or market-specific configurations.

Four-Wheel Drive

The four-wheel drive system supports traction and mobility on construction sites, rural roads and uneven outdoor working areas.

4 Forward and 4 Reverse Gears

The fixed-shaft powershift transmission provides 4 forward and 4 reverse gears, with a maximum travel speed of 30 km/h.

Hydraulic Pilot Control

Hydraulic pilot control supports smoother and more precise operation of the loader and backhoe working equipment.

Luxury Cab Configuration

The standard luxury cab includes interior trim, fan, LED lights, large reversing camera display, sliding windows, sunroof, heating, adjustable rotating seat, adjustable instrument panel and LCD display.

22 MPa Hydraulic System

The hydraulic system operates at 22 MPa and provides 46.5 kN backhoe bucket digging force for practical excavation and trenching work.

A-Type Stabilizers

A-type stabilizers provide additional support during rear excavation, helping improve machine stability for digging and trenching operations.

Wide Range of Optional Attachments

A wide range of front loader and backhoe attachments is available, including quick couplers, pallet forks, multipurpose buckets, grapples, snow blades, hydraulic breaker, auger, extension arm, telescopic arm and digging buckets in multiple widths for different job-site applications.

APPLICATIONS

Recommended Applications

Construction Sites

Suitable for loading aggregates, digging trenches, backfilling, site leveling and general material handling on construction projects.

Road Maintenance

Can be used for road repair, roadside excavation, shoulder maintenance, drainage clearing and related earthmoving work.

Trenching and Drainage Work

The rear backhoe supports trench excavation, drainage channel work, pipe installation preparation and general utility excavation.

Municipal Engineering

Suitable for municipal maintenance, small excavation projects, utility work, material loading and general infrastructure support.

Rural Construction

Can support village road projects, rural house construction, drainage work, land preparation and material handling in countryside environments.

Farm Infrastructure

Suitable for ditch digging, farm road maintenance, soil handling, site leveling and general agricultural infrastructure work.

Material Loading

The front loader can handle soil, sand, gravel, construction debris and other materials for loading and short-distance transfer.

Rental Fleet Use

A multifunctional option for rental companies serving contractors, municipal teams, rural builders, farms and project buyers.

MANUFACTURER STRENGTH

Direct Manufacturer Support from XQ Machinery

XQ Machinery supports global buyers with factory-direct machinery supply, product customization, quality inspection, export documentation and long-term after-sales service.

Direct Factory Supply

Work directly with XQ Machinery for stable communication, factory quotation and reliable production support.

OEM & ODM Available

We support product customization, branding requirements and configuration options for different markets.

Quality Inspection Before Shipment

Machines are checked before delivery, with photos, videos and inspection support available for buyers.

Global Export Support

Our team supports quotation, export documents, shipping coordination and delivery communication.

Warranty & Spare Parts Support

We provide warranty support, technical communication and spare parts supply for long-term operation.

Long-Term Cooperation

Suitable for dealers, contractors, rental companies and project buyers looking for stable machinery supply.

FAQ

Frequently Asked Questions

What is the main use of the XQ-WZ3CX 4WD backhoe loader?

The WZ3CX 4WD backhoe loader is mainly used for loading, digging, trenching, backfilling, road maintenance, rural construction, farm infrastructure and general material handling work.

What is the loader bucket capacity?

The loader bucket capacity is 1.5 m³.

What is the loader lifting capacity?

The loader lifting capacity is 2800 kg.

What is the backhoe bucket capacity?

The backhoe bucket capacity is 0.3 m³.

What is the maximum digging depth?

The standard maximum digging depth is 4100 mm. An optional telescopic arm can extend the digging depth to 5300 mm.

What engine does the XQ-WZ3CX use?

The standard engine is a WeiChai turbo engine with 70 kW rated power.

Are optional engines available?

Yes. Optional engines include the 85 kW YUCHAI YCD4T33T6-115, 93 kW CUMMINS 4BT3.9-C125 and 75 kW CUMMINS EURO 5 QSB3.9-C100.

Is the XQ-WZ3CX a four-wheel drive backhoe loader?

Yes. Four-wheel drive is included in the standard configuration.

What are the transport dimensions?

The transport dimensions are 7600 × 2380 × 2890 mm.

What is the operating weight?

The operating weight is 10700 kg.

What tyre sizes does this model use?

The front tyre size is 14-17.5, and the rear tyre size is 19.5L-24.

What transmission does the XQ-WZ3CX use?

The WZ3CX 4WD backhoe loader uses a YJ280 torque converter with a fixed-shaft powershift gearbox and provides 4 forward and 4 reverse gears.

What brake system does the XQ-WZ3CX use?

The service brake uses a caliper disc brake with air-over-hydraulic actuation. The parking and emergency brake is external, self-adjusting and self-balancing, with manual brake release.

How many units can be loaded in one 40HC container?

According to the current packing specification, 2 units can be loaded in one 40HC container, with the tyres, backhoe boom and bucket removed and auxiliary wheels used for loading.

What standard cab features are included?

The standard configuration includes a luxury cab with interior trim, fan, LED lights, large reversing camera display, emergency glass hammer, fire extinguisher, sliding windows, sunroof, heating, adjustable rotating seat, adjustable instrument panel and LCD display.

Can the XQ-WZ3CX be used for road maintenance and trenching?

Yes. The XQ-WZ3CX can be used for road maintenance, trenching, drainage work, utility excavation, backfilling and general earthmoving applications.

What optional attachments are available for the XQ-WZ3CX?

Optional attachments include front and rear quick couplers, pallet forks, 4-in-1 and 6-in-1 buckets, log grapples, grass grapple, snow blade, dozer blade, hydraulic breaker, auger, extension arm, telescopic arm and digging buckets in multiple widths.
